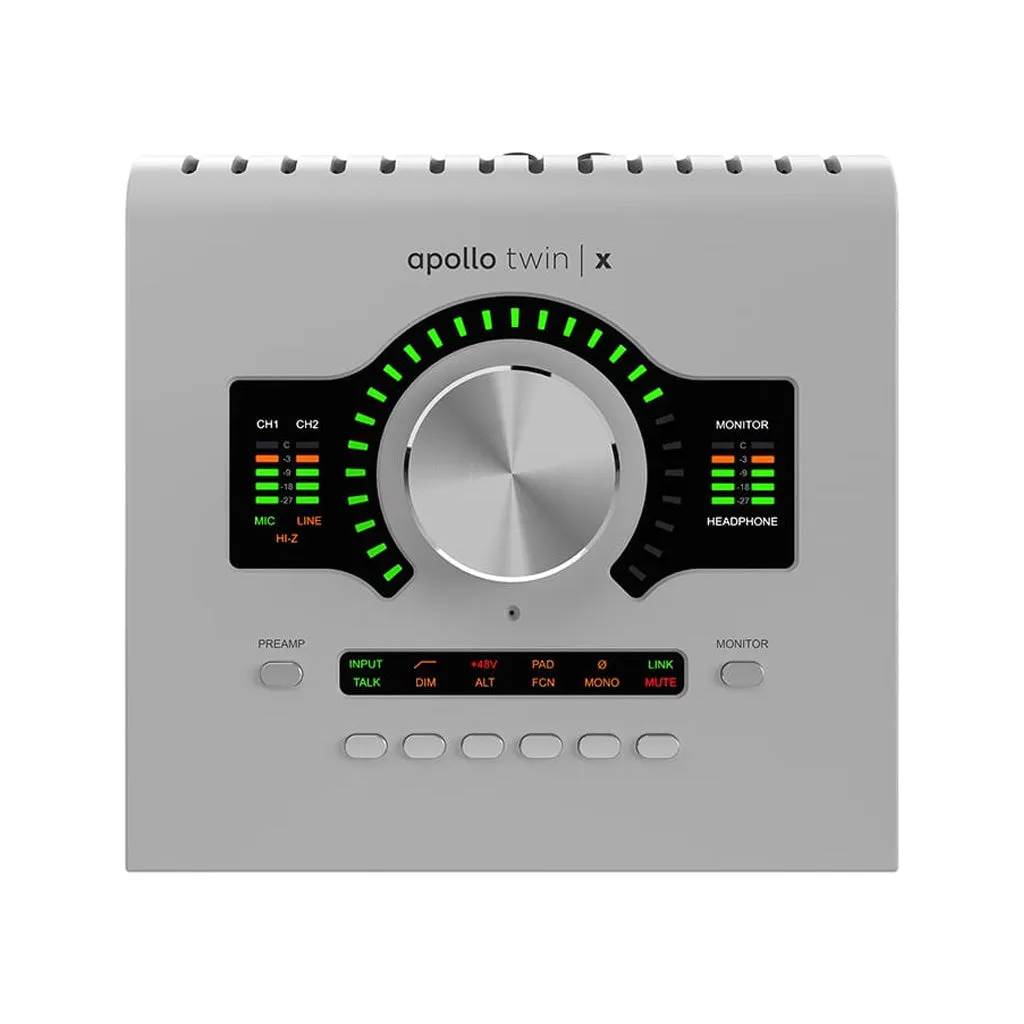

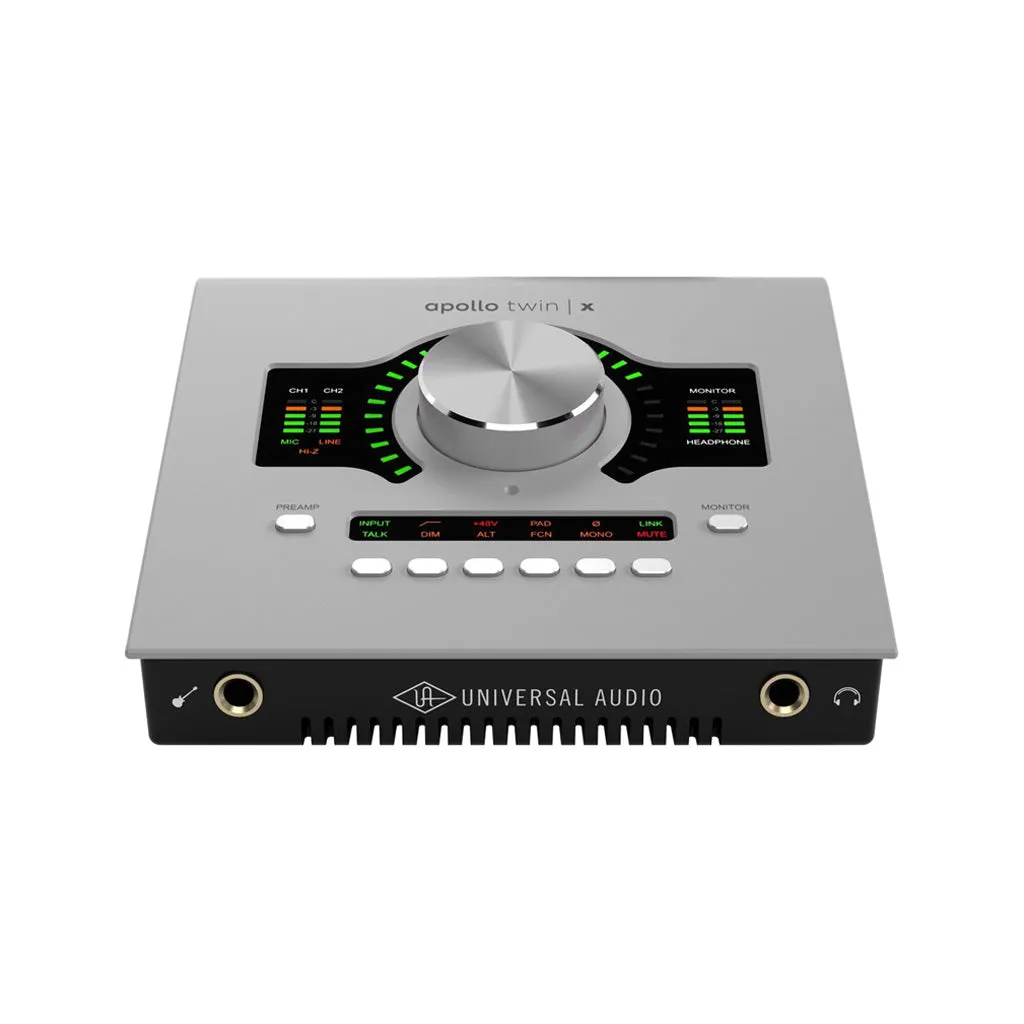

Name: Universal Audio Apollo Twin X QUAD Gen 2 Essentials Thunderbolt Audio Interface
SKU: 344362

Hear every detail with Universal Audio's most advanced Apollo Twin ever. Featuring the highest-resolution audio conversion, Unison™ mic preamps, and real-time UAD processing — which lets you record through plug-ins from Neve, API, Manley, Auto-Tune, and more without latency — Apollo Twin X puts decades of inspiring analogue studio sound right on your desktop.

Essentials Plug-ins Bundles:

Channel Strips & Preamps: Century Tube Channel Strip, CS-1 Channel Strip, Helios Type 69 Preamp & EQ, Precision Channel Strip, UA 610-A Preamp & EQ, UA 610-B Preamp & EQ
Compressors/Limiters: Fairchild 670 Legacy, Teletronix LA-2A Classic Leveler, Teletronix LA-2A Gray Classic Leveler, Teletronix LA-2A Silver Classic Leveler, Teletronix LA-2A Legacy Leveling Amplifier, UA 1176LN Legacy, UA 1176SE Legacy
Equalizers: Helios Type 69 Legacy EQ, Pultec EQP-1A Legacy EQ, Pultec EQP-1A Passive EQ, Pultec HLF-3C Passive EQ, Pultec MEQ-5 Passive EQ, Pultec Pro Legacy EQ
Special Processing: Auto-Tune Realtime Access, Oxide Tape Recorder, Precision Enhancer Hz, Verve Analog Machines Essentials
Instruments: PolyMAX Polyphonic Synth
Delay & Modulation: Galaxy Tape Echo, Precision Delay Mod, Precision Delay Mod L
Reverbs & Rooms: Precision Reflection Engine, Pure Plate Reverb, RealVerb Pro Custom Room Modeler
Guitar & Bass: Ampeg SVT-VR Classic Bass Amplifier, Marshall Plexi Classic Amplifier, Raw Distortion

Features:

10 x 6 Thunderbolt audio interface with QUAD Core DSP plug-in processing

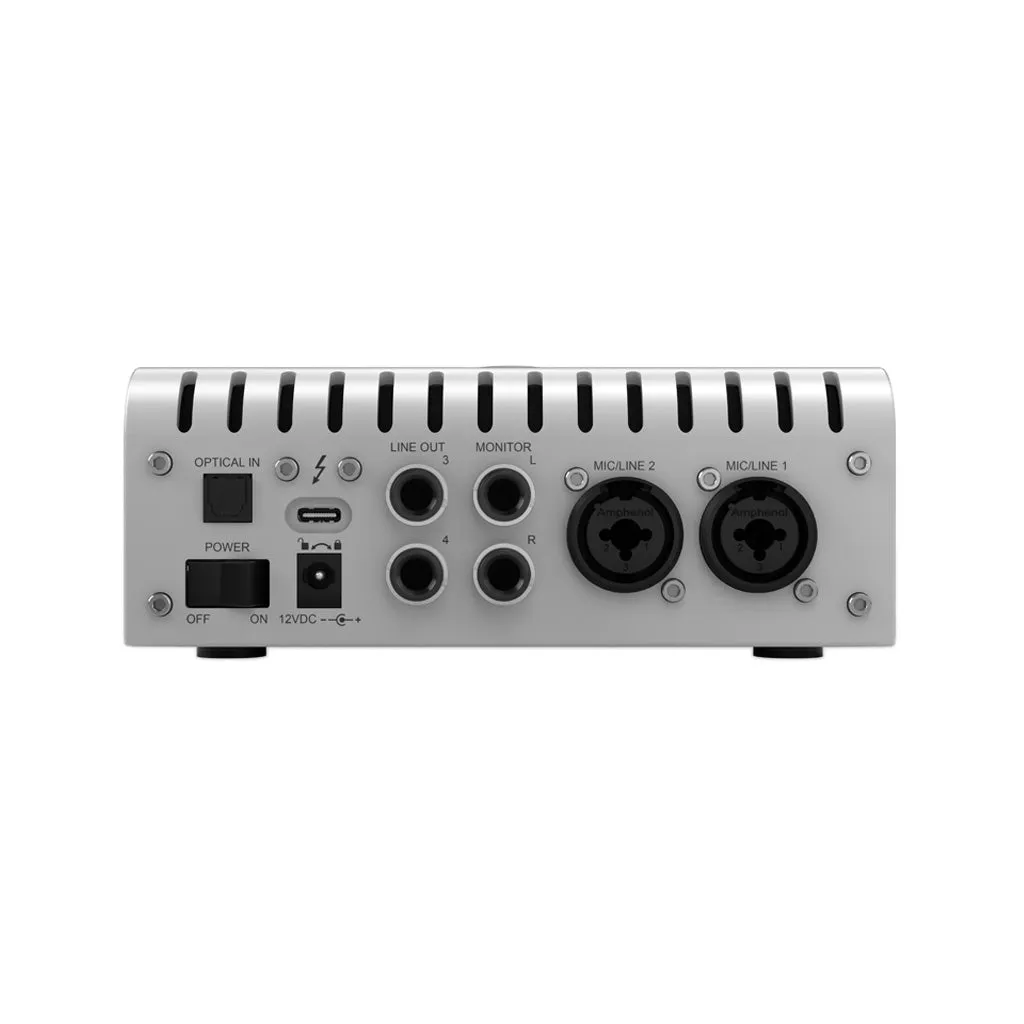

Two Unison™ mic preamps, Hi-Z instrument input, optical Toslink input (ADAT or S/PDIF)
Two 1/4" monitor outs, two 1/4" line outs (ALT), one 1/4" TRS headphone out
Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution
Enhanced D/A for critical monitoring and playback with 129 dB dynamic range
Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
Includes up to 50 UAD plug-ins with Essentials or Studio Editions
Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more
Expandable with Thunderbolt Apollo interfaces or select models over Dante
Free industry-leading technical support from knowledgeable audio engineers

Specifications:

Simultaneous Channel I/O Count (analog digital): 10 x 6 (ADAT mode)
Mic Inputs: Two XLR Female - pin 2 positive (Combo XLR/TRS), 20 Hz – 20 kHz, ±0.04 dB Frequency Response, 10 dB to 65 dB Gain Range
High Impedance (Hi-Z) Instrument Inputs: One ¼" Female TS Unbalanced, 20 Hz – 20 kHz, ±0.05 dB Frequency Response, 10 dB to 65 dB Gain Range
Analog Line Inputs: Two ¼" Female TRS Balanced, 20 Hz – 20 kHz, ±0.04 dB Frequency Response, 10 dB to 65 dB Gain Range
Analog Line Outputs (DC coupled): Two (four including Monitor outputs) ¼" Female TRS Balanced, 20 Hz – 20 kHz, ±0.01 dB Frequency Response
Analog Monitor Outputs (DC coupled): Two (one stereo pair) ¼" Female TRS Balanced, 20 Hz – 20 kHz, ±0.04 dB Frequency Response
Digital Audio Port (ADAT or S/PDIF, selectable): One Optical TOSLINK JIS F05 Input
S/PDIF Channels: One stereo input, 44.1, 48, 88.2, 96 supported sample rate
ADAT Channels: Up to eight input channels, 44.1, 48, 88.2, 96, 176.4, 192 Supported Sample Rates (kHz)
Headphone Output: One ¼" Female TRS Stereo, 20 Hz – 20 kHz, ±0.01 dB Frequency Response
Digital Audio Port (ADAT or S/PDIF, selectable): One input
Thunderbolt 3 Port: One (For Mac only)
Simultaneous A/D Conversion: Two channels
Simultaneous D/A Conversion: Six channels
Available Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample: 24
Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
Power Supply: External AC-to-DC Power Supply, Level VI compliant
Includes: Apollo Twin X Gen 2 audio interface, External power supply and region-specific AC cable (USA, EU, UK, ANZ, or Japan), Getting Started URL card
Dimensions: 6.31" (W) x 5.89" (D) x 2.59" (H) / 160.34 mm (W) x 149.59 mm (D) x 65.81 mm (H)
Weight: 1.04 kg / 2.29 pounds
