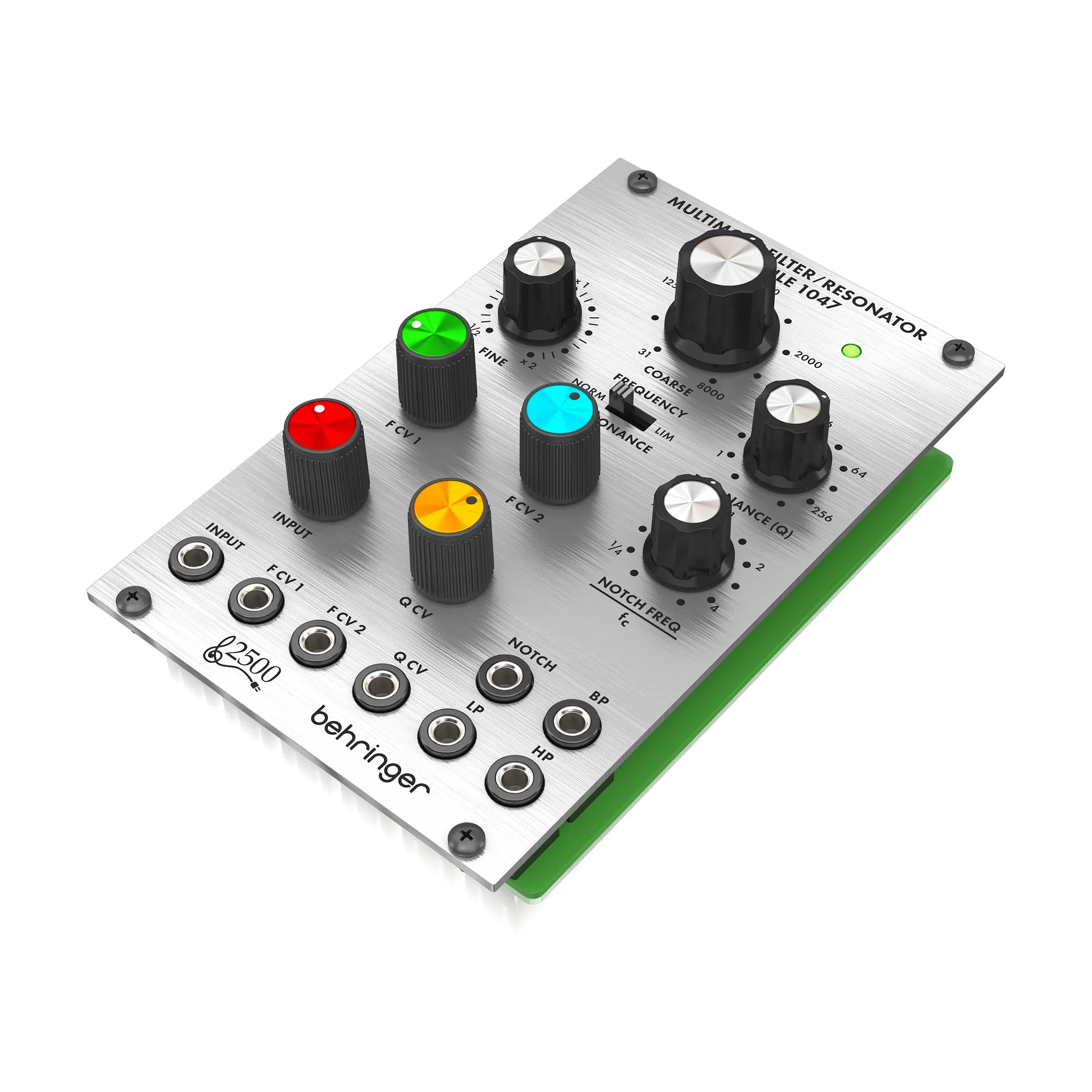

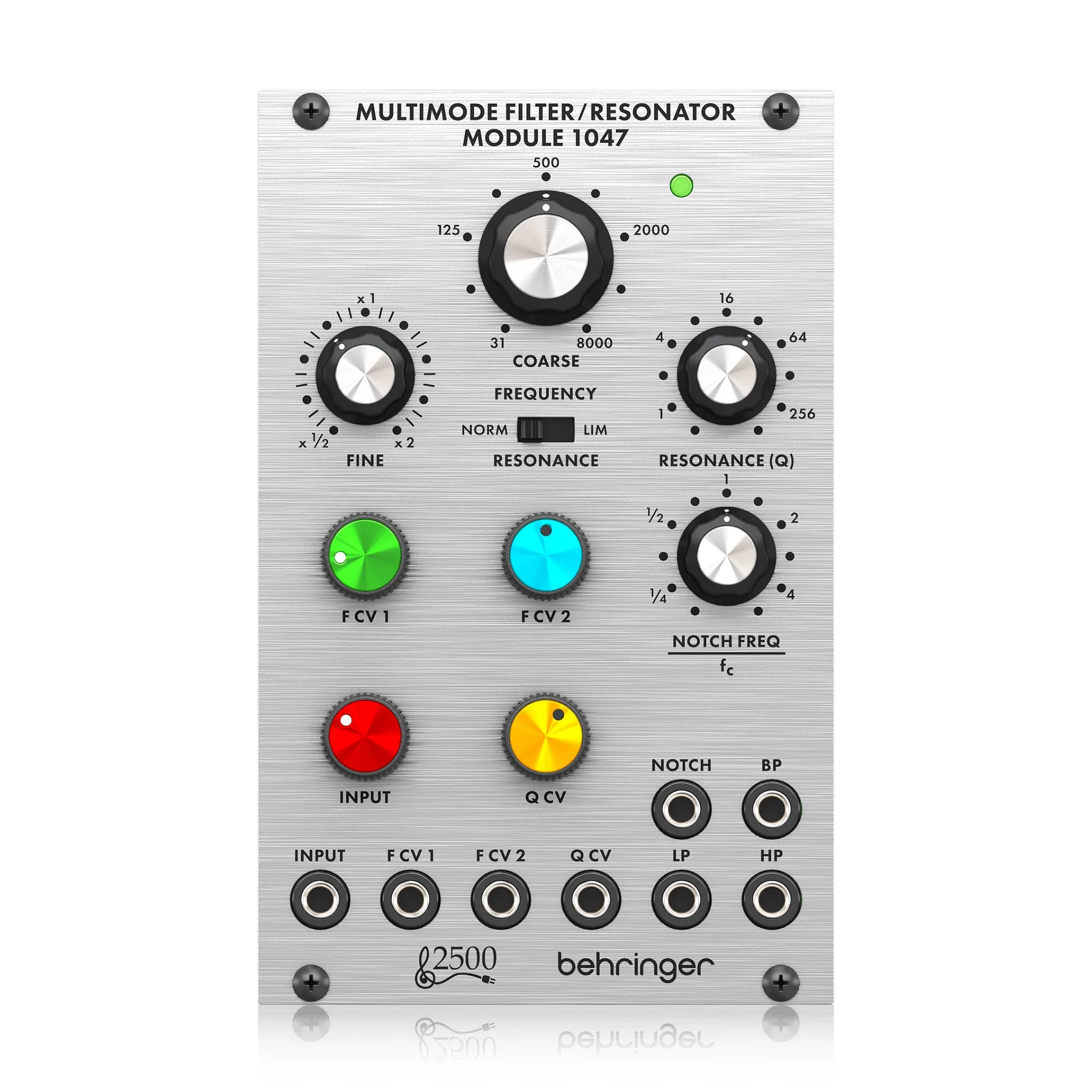

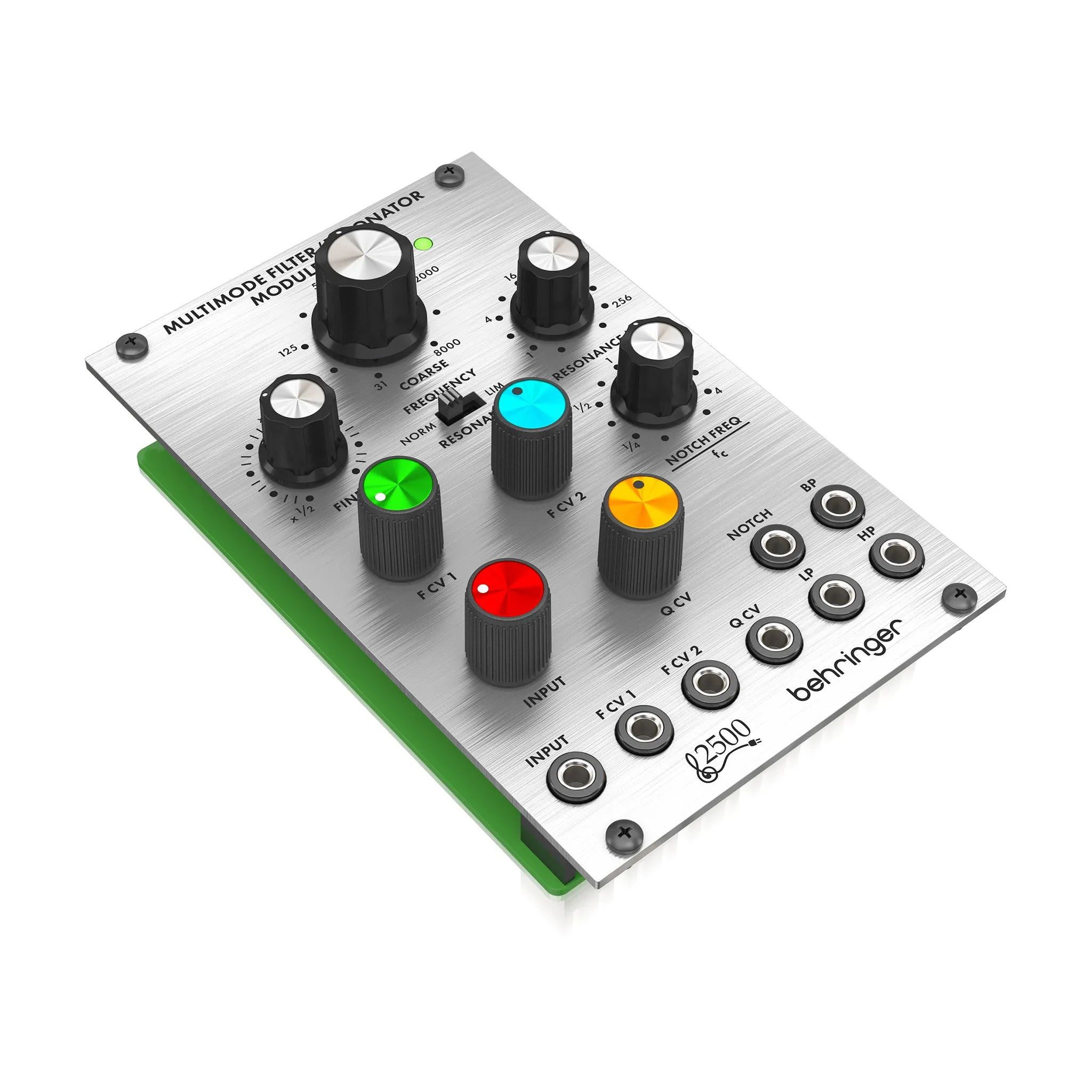

An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the MULTIMODE FILTER/RESONATOR MODULE 1047 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
Features:
- Classic-sounding 1047 analog multi-mode filter and resonator module from the '70s
- Authentic reproduction of the circuitry from the "2500" Series
- Consists of a highly resonant 12 dB state-variable filter capable of proving a wide variety of formant shaping and tonal modulation
- Filter simultaneously provides high-pass, band-pass, low-pass and notch outputs
- Coarse and fine controls adjust the cut-off frequency of the filter from 16 Hz to 16 kHz with 2 external control signal inputs and attenuators
- Resonance (Q) control adjusts the level of the resonant peak from 0 to 512 with an external control signal input and attenuator
- Keyboard percussion feature allows the filter to generate a wide range of percussive sounds
- A keyboard gate signal is connected to the external input with a keyboard CV connected to a frequency control input
- Striking a key will create percussive sounds when the Keyboard Percussion mode is activated
- When the keyboard is released the filter tone damps at a rate determined by Final Q
- Eurorack specs: 16 HP, XX mA 12 V, XX mA -12 V
