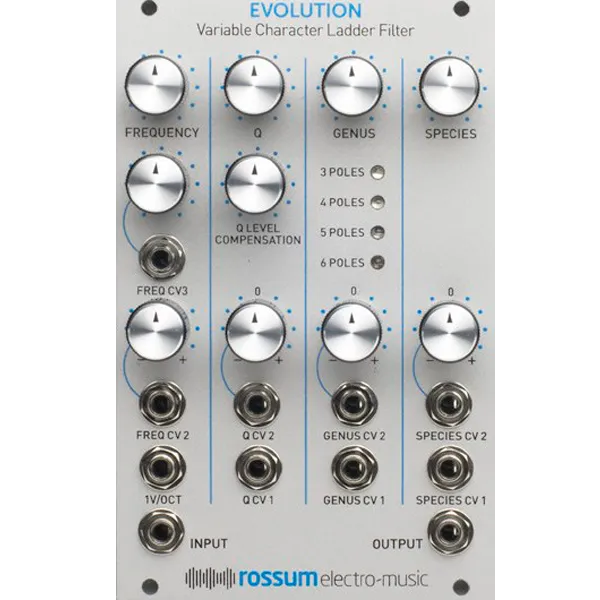

At the core of the EVOLUTION Variable Character Ladder Filter is Dave Rossum’s enhancement of the iconic Moog ladder filter from the original E-mu Systems 2100 LPF module (which, incidentally, Dave counts as his favorite sounding of all of the analog filters he designed).

For EVOLUTION, Dave has designed new capabilities that not only allow you to dial in all of the outstanding qualities of the original 2100, but combine to let you create the sonic characteristics of a wide variety of other filter types.

They include:

• A Genus control that allows continuous voltage control of the number of filter poles (from 3 to 6 poles), essentially allowing real-time variation of Evolution’s effective cutoff slope from 18dB/oct to 36dB/oct. LEDs give continuous indication of the current slope.
• A Species control that lets you vary the signal level into the ladder, letting you control the intensity of the filter’s characteristic distortion. When in self-oscillation mode, this control modulates the amplitude of Evolution’s output.
• Voltage controlled resonance with a variable Q Level Compensation control that controls the balance of the resonant peak and the frequencies below the cutoff frequency (which would otherwise be attenuated as the resonance is increased).
• An extremely accurate and temperature-stable frequency control exponential generator (accurate over 10 octaves), rivaling the specifications of the best analog VCOs.

Taken together, EVOLUTION gives you everything from the platonic ideal of the classic ladder filter to a vast selection of alternative filter characteristics.

And like all Rossum Electro-Music modules, it’s solidly built, with machined aluminum knobs and high quality components throughout.

To learn a lot more about the evolution of EVOLUTION, check out  from Dave’s lab.

Evolution Specifications

Controls

Initial Frequency

Initial Q

Q Level Compensation

Initial Genus (# of Poles)

Initial Species (Ladder Input Level)

Signal Input

1x 3.5 mm mono socket  – 100 kΩ Input Impedance

Signal Output

1x 3.5 mm mono socket – 1 kΩ Output Impedance

Frequency CV Inputs

1x Attenuated – min 50 kΩ Input Impedance

1x w/Attenuverter – 100 kΩ Input Impedance

1x 1V/OCT Full Level – 100 kΩ Input Impedance

Q CV Inputs

1x Full Level – 100 kΩ Input Impedance

1x w/Attenuverter – 100 kΩ Input Impedance

Genus CV Inputs

1x Full Level – 100 kΩ Input Impedance

1x w/Attenuverter – 100 kΩ Input Impedance

Species CV Inputs

1x Full Level – 100 kΩ Input Impedance

1x w/Attenuverter – 100 kΩ Input Impedance

Power Requirements

/-12 V via 16-pin, Doepfer-style connector

Current Draw

85 mA 12 V, 75 mA -12 V (maximum)

Dimensions

16HP (W); Rear of panel to top of power connector (with connector plugged in) 25 mm (D)

Supplied Accessories

1x 16-pin, Doepfer-style power cable

4x M3 screws

4x M2.5 screws

4x Nylon washers

1x Quickstart Guide
