OVERVIEW

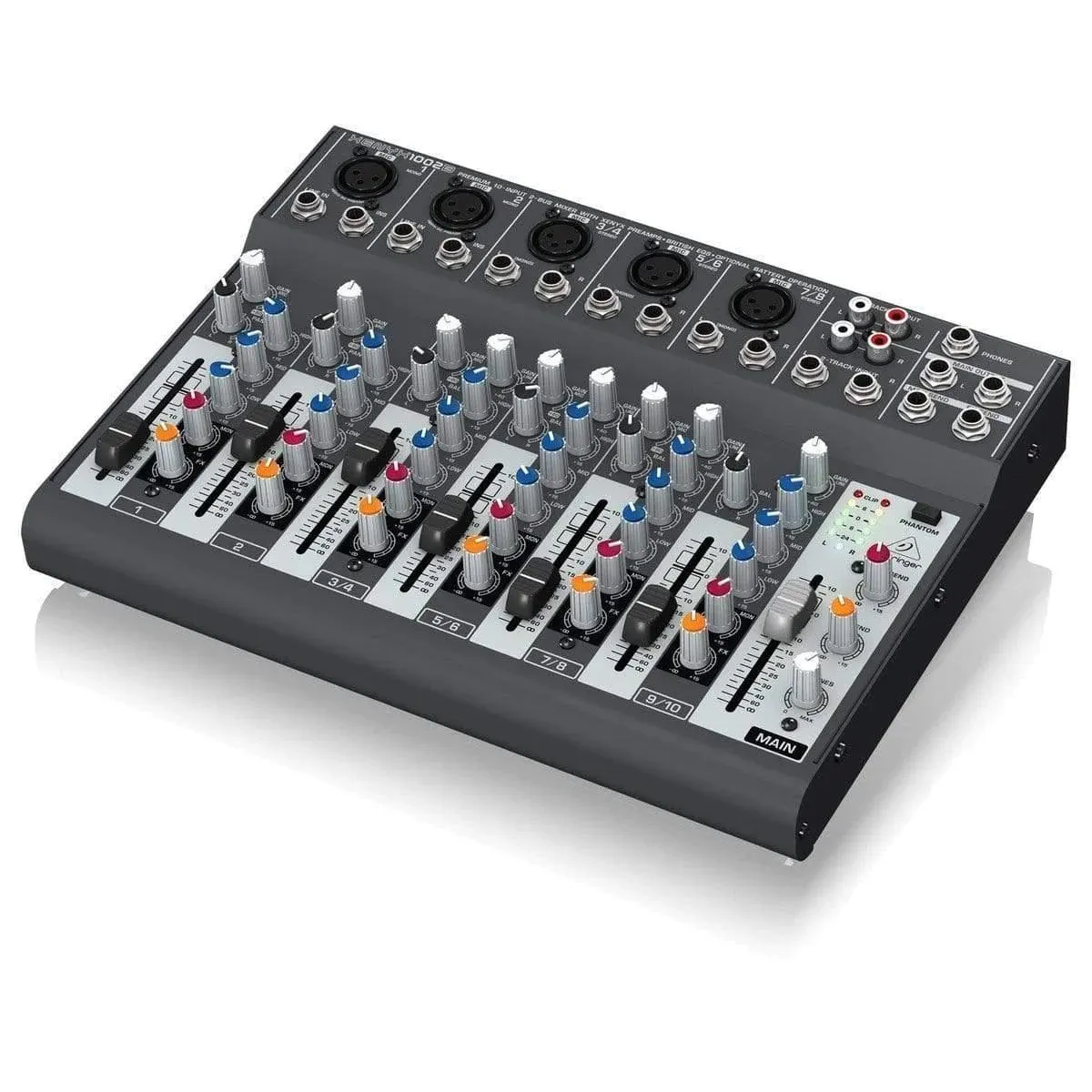

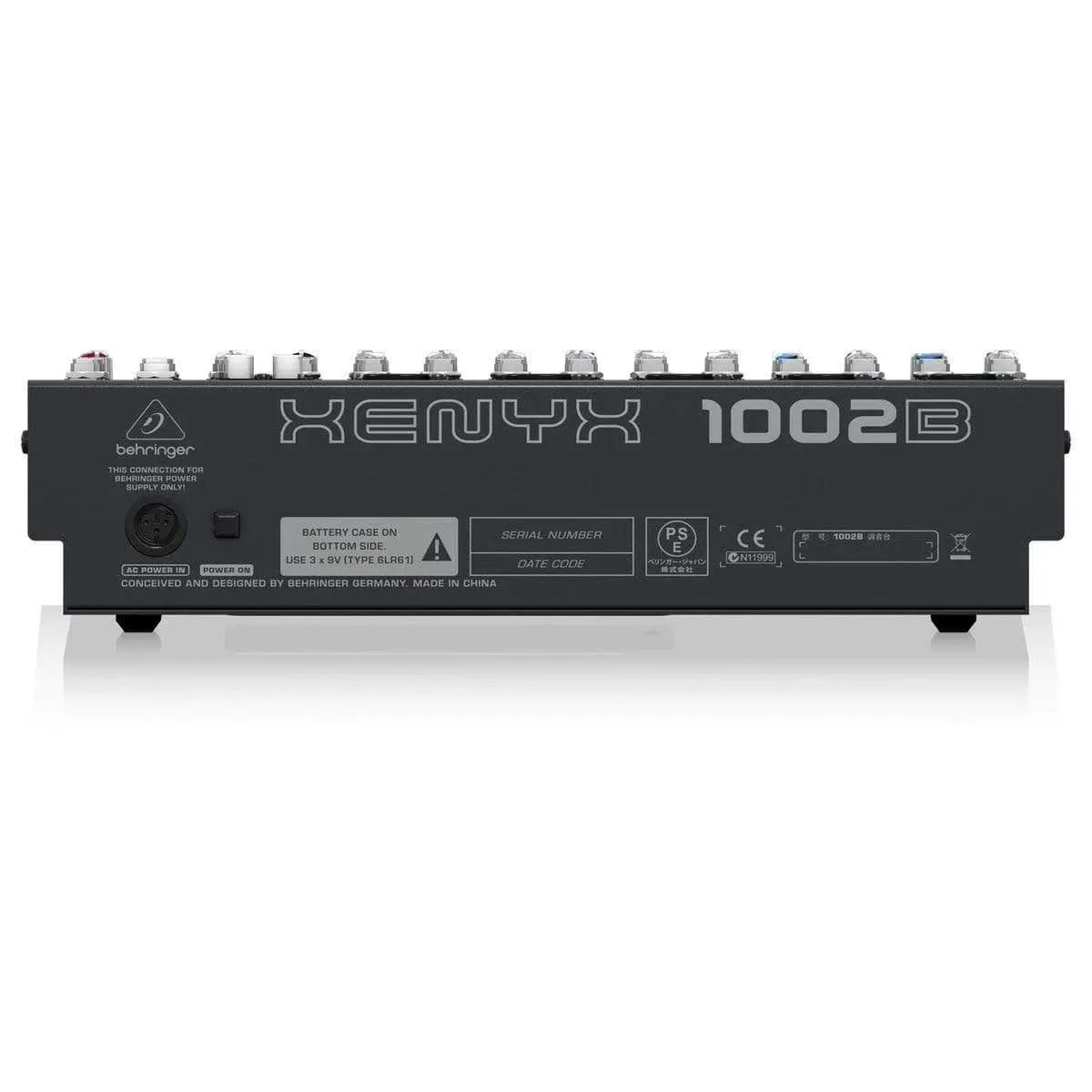

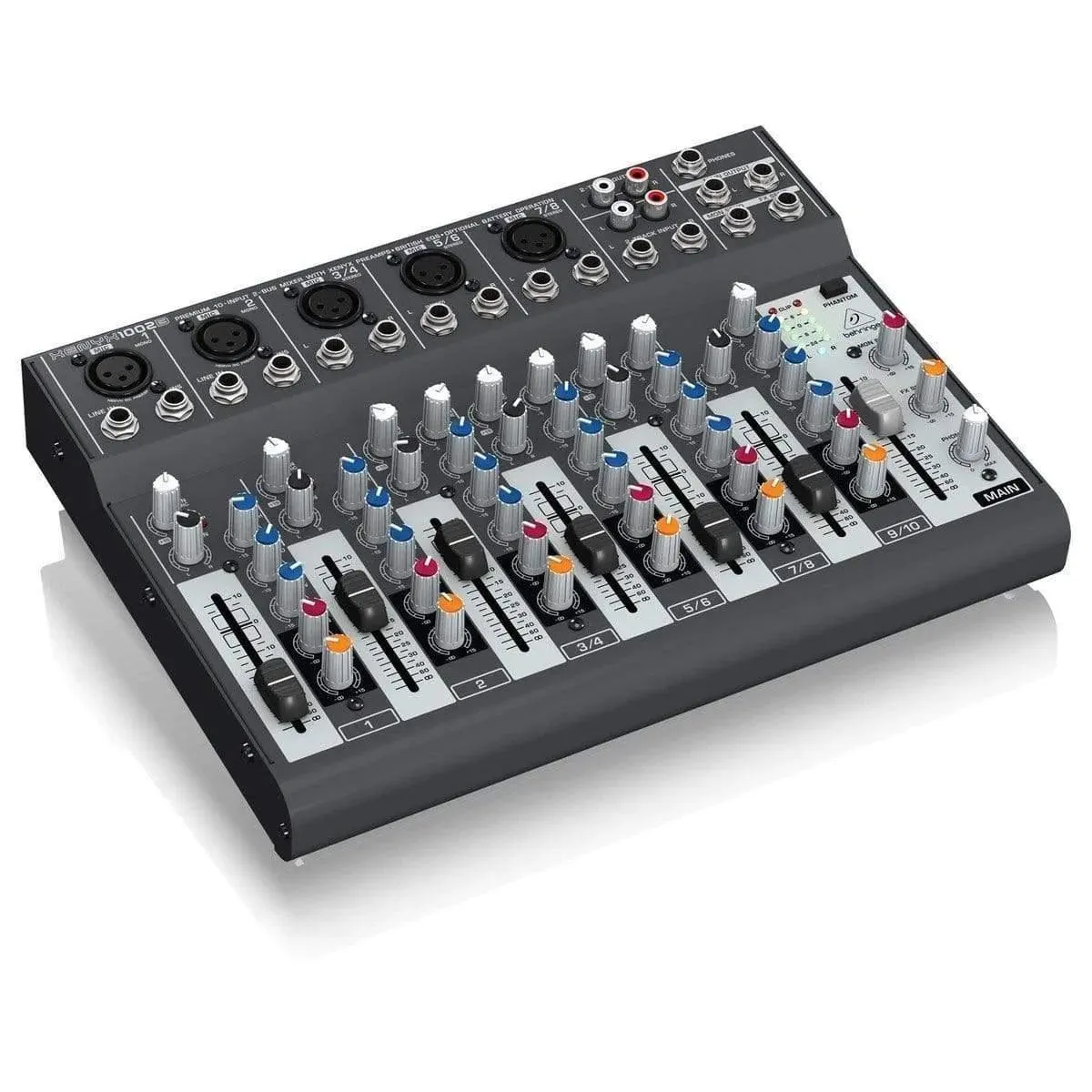

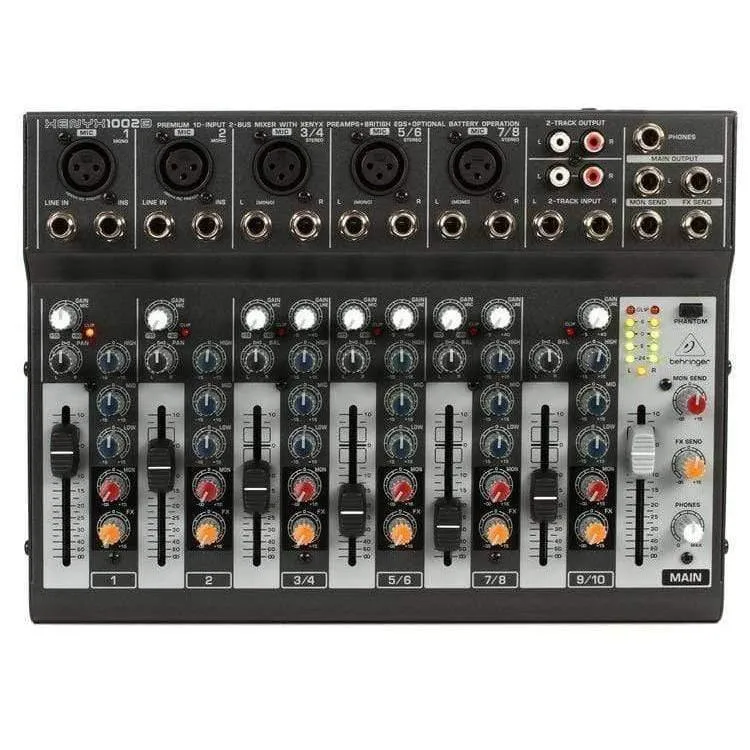

The ultra-compact XENYX 1002B mixer 10 Inputs (2 mic channels, 4 stereo channels with 3 extra mic inputs) allow you to effortlessly achieve premium-quality sound, thanks to the 2 studio-grade, phantom-powered XENYX Mic Preamps, and ultra-musical 3-band British channel EQ. The XENYX 1002B's compact size and flexible input scheme make it the natural choice of sports announcers for calling play-by-play game action. Likewise, radio and TV reporters especially like the XENYX 1002B for its ease-of-use, remarkable fidelity, and rugged reliability. And the 1002B's convenient 9 V battery capability allows newscasters and correspondents to use the 1002B in remote locations ‚where the nearest power outlet may be many miles away.
FEATURES
-
Premium ultra-low noise analog mixer with optional battery operation
-
2 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
-
Neo-classic ''British'' 3-band EQs for warm and musical sound
-
Optional battery operation (with 9 V alkaline batteries) allows for mobile operation
-
4 balanced, high-headroom stereo inputs with 3 additional mic inputs
-
One FX send and one Monitor send per channel for external FX devices and monitor applications
-
Clip LEDs on all channels and dedicated inserts on all mono channels
-
Main output plus separate Phones and CD/Tape outputs
-
Switchable phantom power for condenser microphones
SPECS
| Type | Analog |
| Weight | 2.5 Kg |
| Aux Sends | 1 x Pre, 1 x Post |
| Brand | Behringer |
| Channels | 6 |
| Dimensions | (H x W x D) 2.87" x 11.75" x 8.5" |
| Effects | No |
| EQ Bands | 3-band EQ |
| Faders | 7 x 60mm |
| Headphones: | 1 x 1/4" TRS |
| Inputs - Line | 2 x 1/4", 8 1/4" (stereo paired) |
| Inputs - Mic Preamps: | 5 x XLR |
| Inputs/Outputs - Other | 2 x RCA (2-track in), 2 x 1/4" (Hi-Z in) / 2 x RCA (2-track out) |
| Manufacturer Part Number : | 1002B |
| Outputs - Main | 2 x 1/4" TRS |
| Phantom Powered | 5 |
| Rack-Mountable | Yes |
| Send/Return I/O: | 2 x TRS (monitor, FX sends) |
