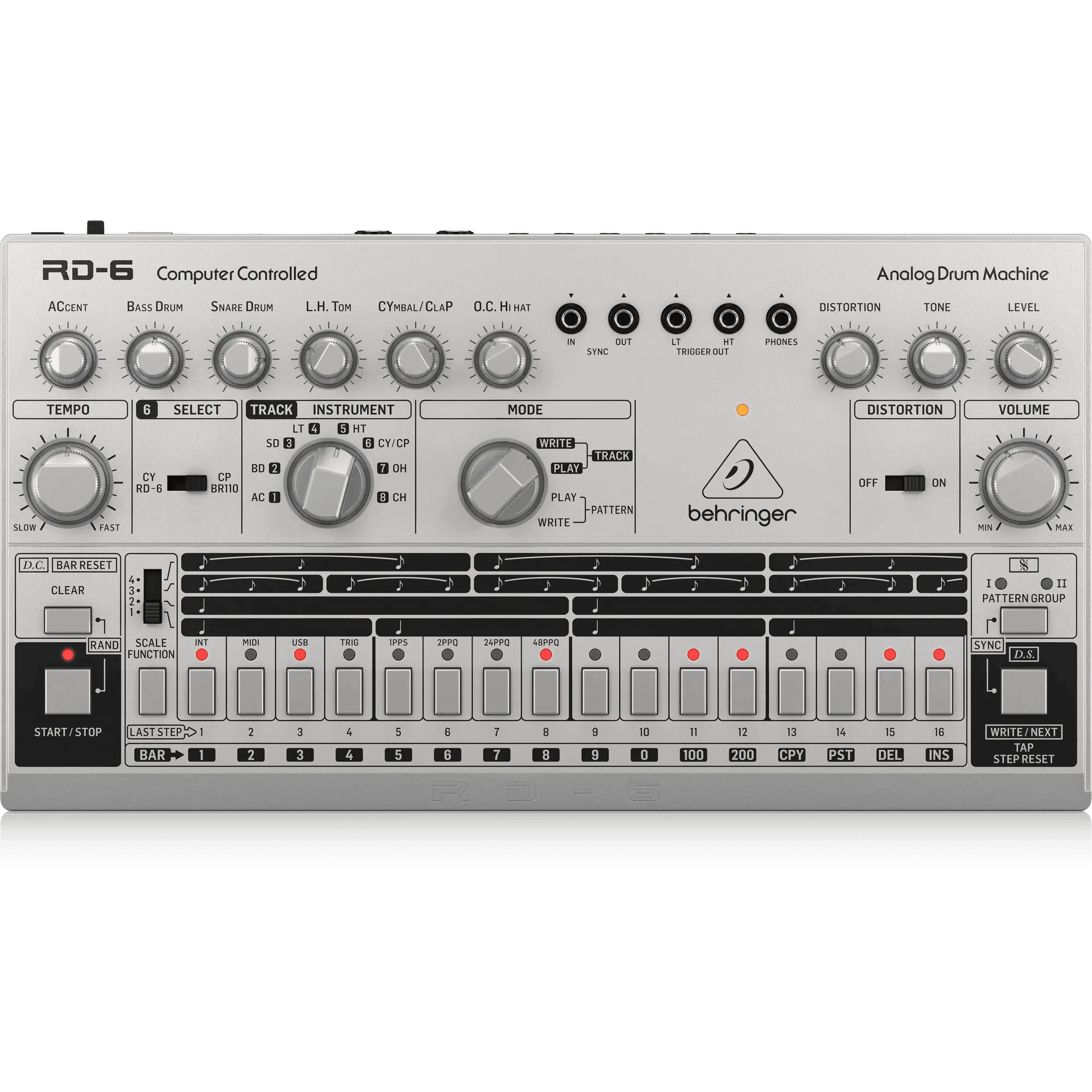

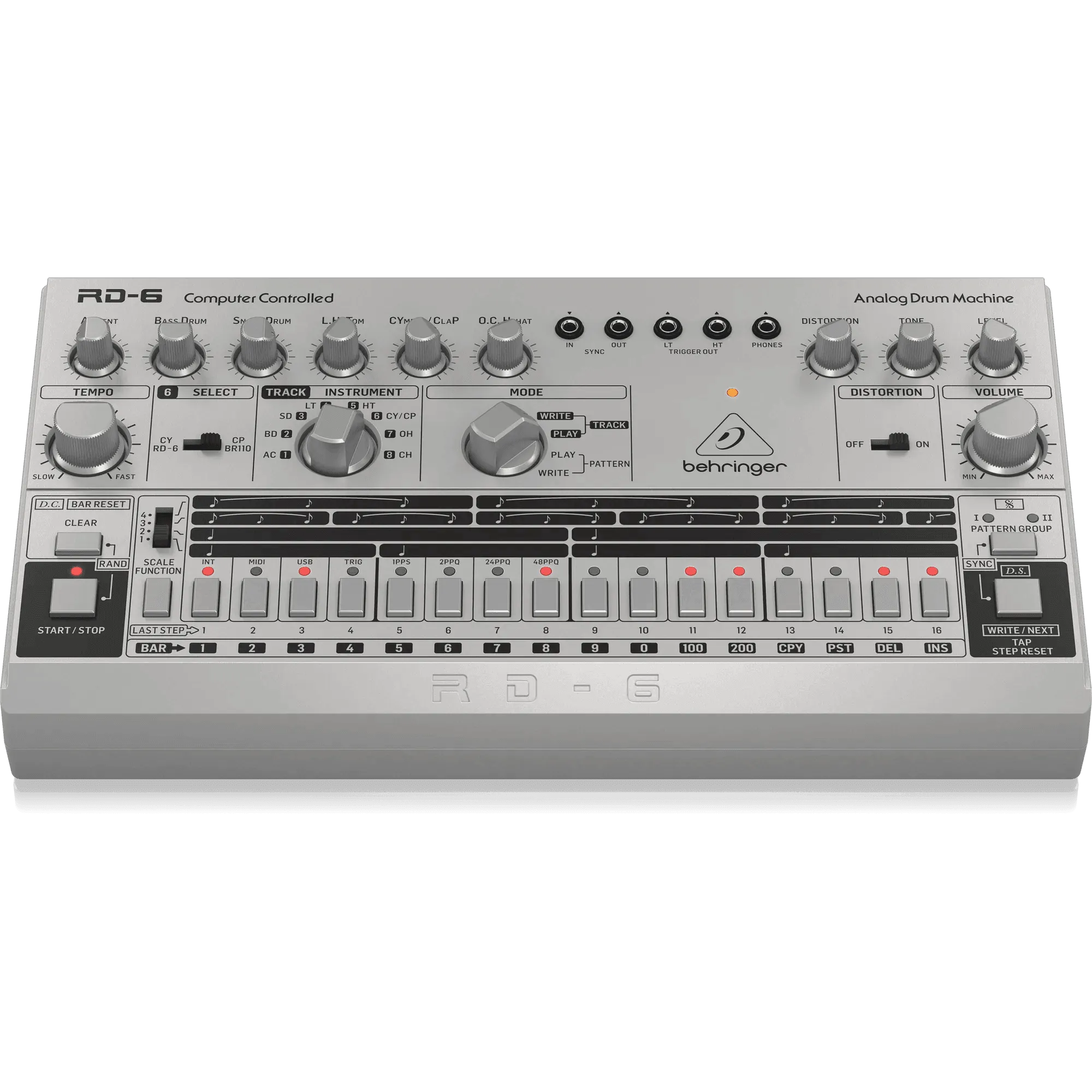

Classic Analog Drum Machine with 8 Drum Sounds, 16-Step Sequencer and Distortion Effects
Features:
-
Amazing Drum Machine with true analog circuitry for classic sound performance
-
Authentic reproduction of original circuitry with matched transistors
-
8 original drum sounds with mix parameters and global accent capability
-
Highly acclaimed and authentic clap sound from the DR-110 drum machine
-
6 independent analog outputs for external processing or recording your rhythms as multi-track audio
-
Easy-to-use 16-step drum sequencer with real-time switching between 32 separate patterns
-
Patterns can be chained into full songs with up to 250 bars
-
Distortion circuitry modeled after the RAT* adds insane spice and edge to your sounds
-
16 authentic-style step buttons with LED indicators for easy pattern creation
-
11 controls and 26 switches to give you direct and real-time access to all important parameters
-
MIDI and USB implementation for synchronization and connection to external devices
-
Sync options include USB, MIDI, Clock and Internal for maximum versatility
| Number of sounds | 8 |
| Type | Analog |
| Number of simultaneous voices | 8 |
| Power input | DC input connector |
| Power switch | Push button on/off |
| USB (MIDI) | USB 2.0, type B |
| MIDI In, Out / Thru | 2 x 5-pin DIN |
| Start / stop | 1 x 1/4" TS |
| Mix out | 1 x 1/4" TS, unbalanced, 1 kΩ impedance |
| Voice out | 6 x 1/8" TS, unbalanced, 100 Ω impedance |
| Sync in / out | 2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V |
| Trigger outs | LT and HT 2 x 15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length. |
| Phones | 1 x 1/8" TRS, stereo, 15 Ω impedance |
