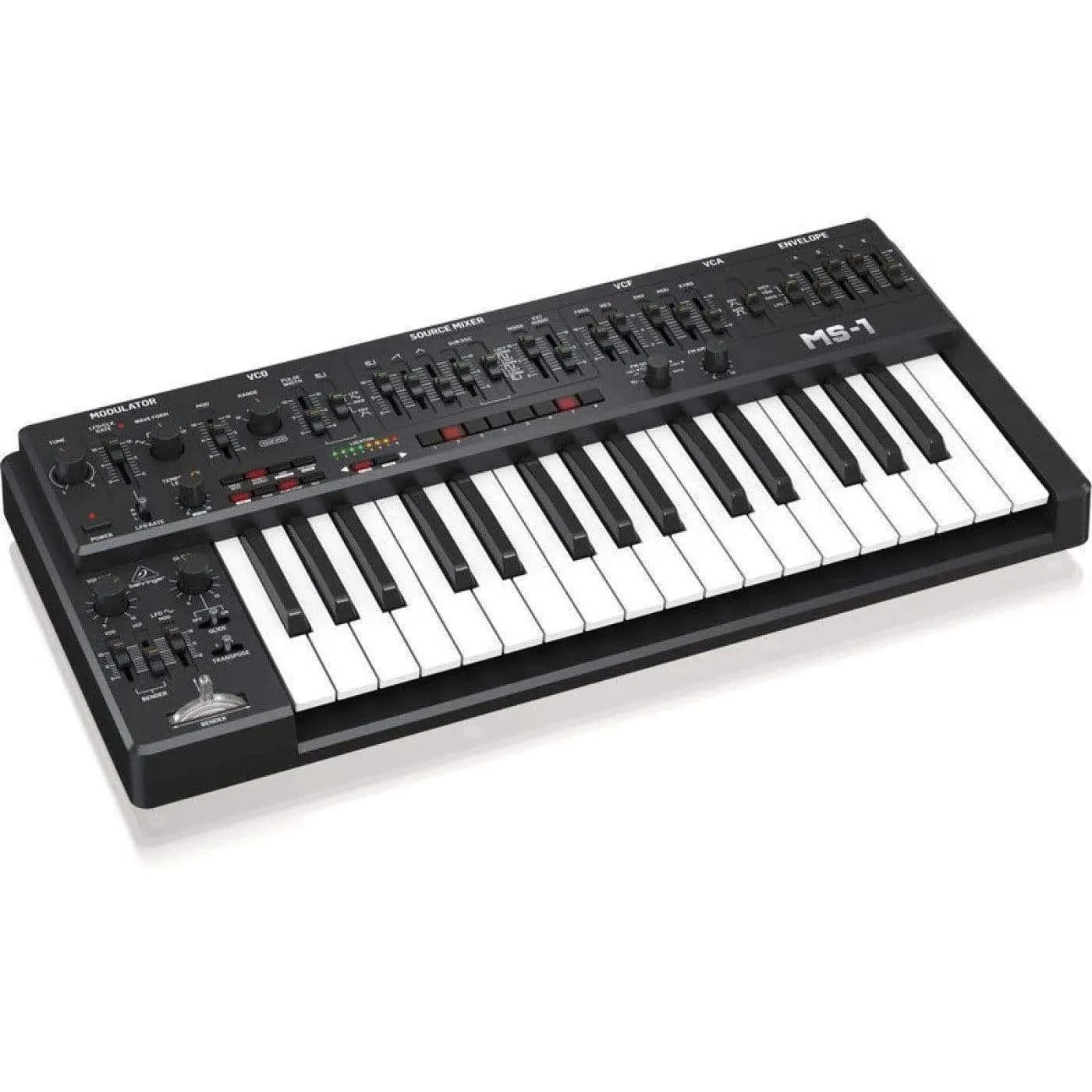

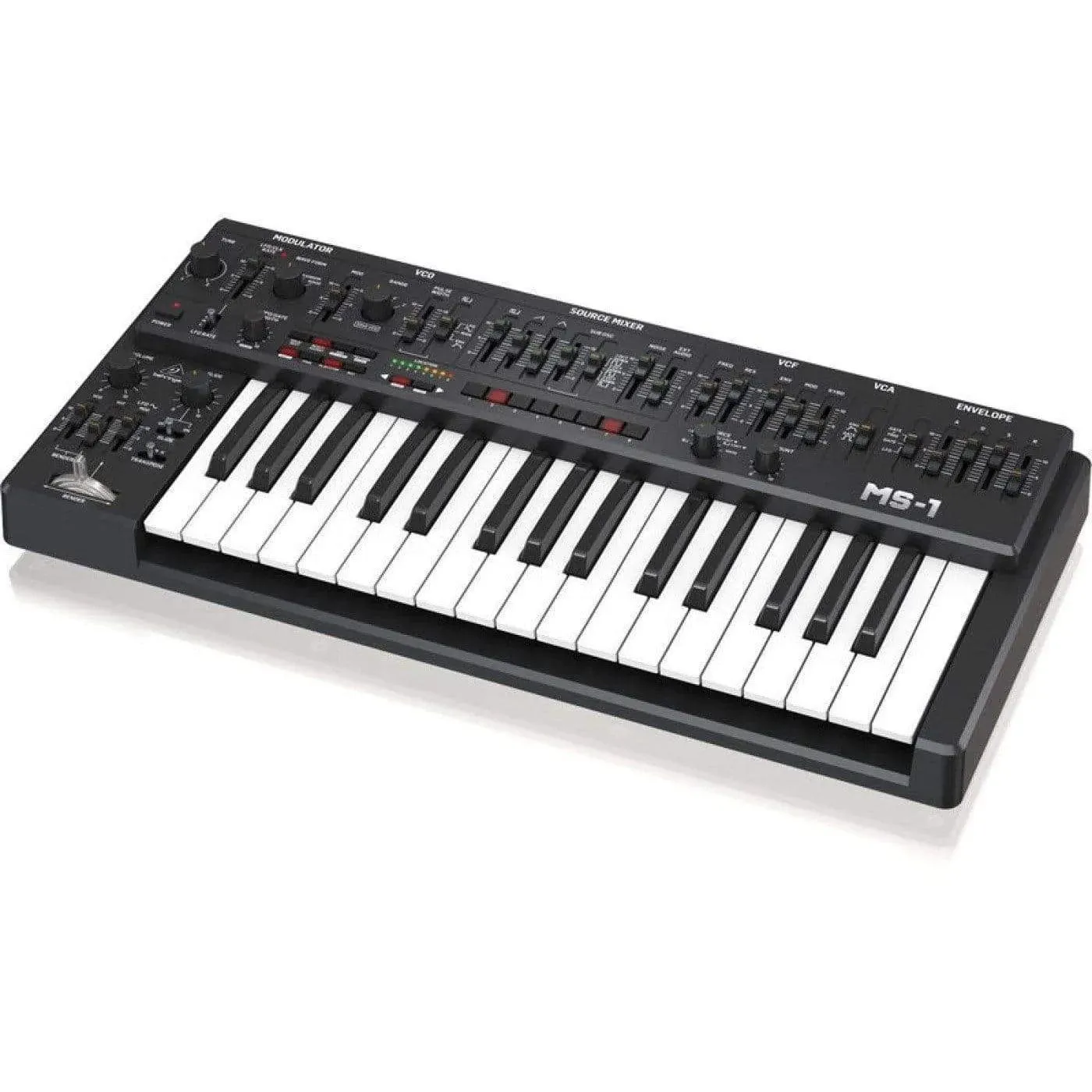

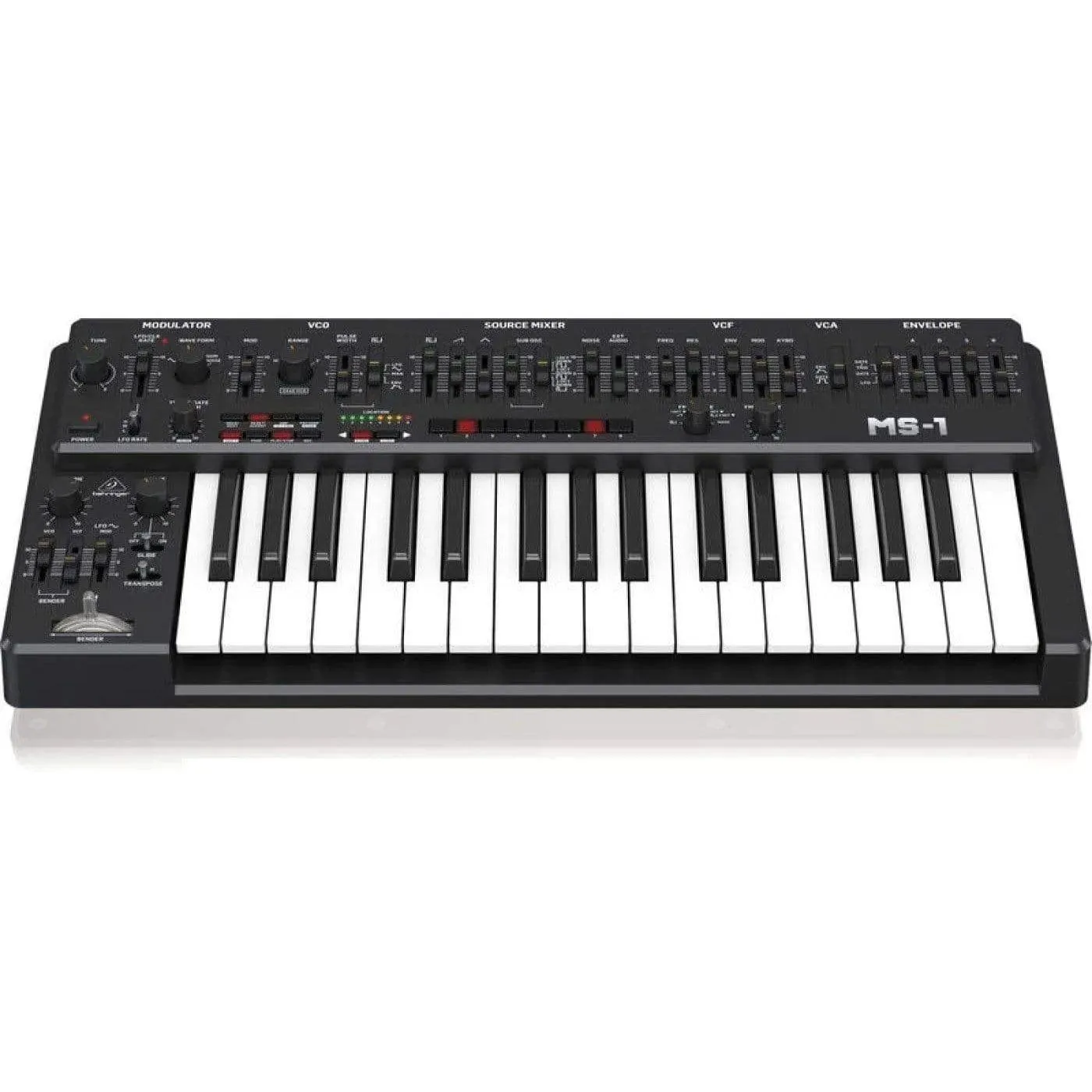

Analog Synthesizer with 32 Full-Size Keys, 3340 VCO with 4 Simultaneous Waveforms, VCF, NovaMod FM Sources, 32-Step Sequencer, Arpeggiator and Live Performance Kit
-
Amazing monophonic synthesizer with authentic 3340 analog oscillator for insanely fat music creation
-
32 semi-weighted full-size keys for great playability
-
Pure analog signal path based on legendary VCO, VCF and VCA designs to recreate the classic sound performance
-
Oscillator with 4 simultaneously-mixable waveforms: saw, triangle, square/pwm and octave-divided square sub-oscillator
-
Resonant VCF can be modulated with ADSR, LFO, keyboard tracking and bender controller
-
6 FM sources based on NovaMod* allow for creative VCF modulation and unheard of filter effects
-
ADSR envelope generator for incredible wave shaping
-
Easy-to-use 32-step sequencer with 64 sequence locations
-
Arpeggiator with wide patterns for great sound effects
-
Attachable handgrip included with pitch bend wheel and pitch modulation trigger
-
Guitar strap included for live jamming on stage
-
Bender assignable to VCO, VCF and pitch mod wheel on attachable handgrip
-
Noise generator can be used as modulation source for distortion-like effects
-
Incredible portamento function for fantastic sound effects
-
Pulse wave can be modulated by LFO, envelope and manually
-
57 sliders and switches to give you direct and real-time access to all important parameters
-
External audio input for processing external sound sources
-
Comprehensive USB/MIDI implementation for connection to keyboard/sequencer
Tech Specs
| Type: | Monophonic Synthesizer |
| Analog/Digital | Analog |
| Number of Keys | 32 |
| Type of Keys | Semi-weighted, Full-size |
| Other Controllers | Pitchbend Wheel, Pitch Modulation Trigger |
| Polyphony | Monophonic |
| Oscillators | 1 x 3340 VCO; Sawtooth, Triangle, Square/Pulse, Square Sub-oscillator (octave divided) |
| Filter | 1 x VCF; Cutoff, Resonance, Envelope, Modulation depth, Keyboard follow |
| Envelope Generator | 1 x ADSR |
| Effects Types | Portamento, Filter Effects |
| Arpeggiator | Yes |
| Sequencer | 32-step, 64 sequence locations |
| Audio Inputs | 1 x 1/4" (audio in) |
| Audio Outputs | 1 x 1/4" (audio out) |
| Headphones | 1 x 1/4" |
| USB | 1 x Type B |
| MIDI I/O | In/Out/Thru/USB |
| Other I/O: | CV in/out, Gate in/out, Velocity out, VCF CV in, External Clock in, Grip, Mod |
| OS Requirements: | Mac:OS X 10.8 or later |
| OS Requirements - PC: | Windows 7 SP1 or later |
| Power Supply: | 9V DC power supply (included) |
